The pictures have arrived! Okay, here we go... Click on them to get full size.

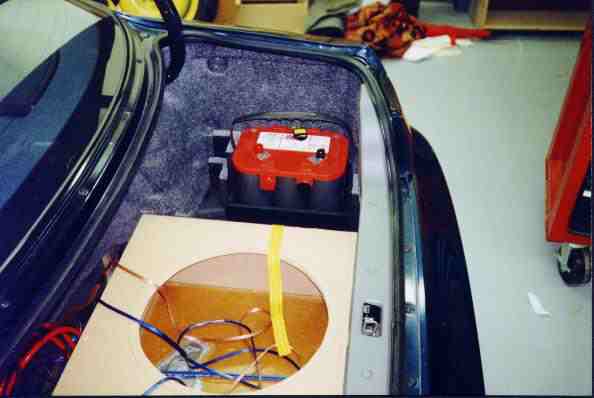

|This picture shows fairly early progress in the trunk. Note: to all of you scratching your head as to how to fasten a box down in your trunk--notice the gray blob inside the box. This is caulking applied over a screw that was driven into the hole that ordinarily holds the spare in. I was skeptical at first, but it works fine. Also a cute little battery mount...|
|This shows the custom rear speaker config. These are Infinity EMIT-K tweets and MB Quart mids. Cool mounting technique. Notice the dynamat-very important, grasshopper!|
This is the main reason I bought this incredible tweeter. It fits in the stock location on the dash pillar. I have yet to meet a tweeter I like better sound wise as well. There are -2dB resistors on all four tweeters in addition to having them toned down on the treble control on my head unit. These babies are so efficient and so loud!

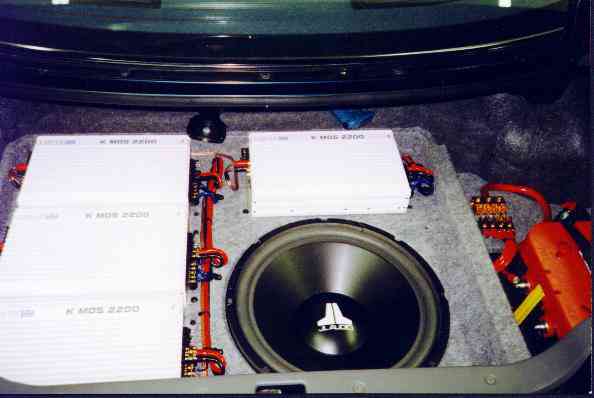

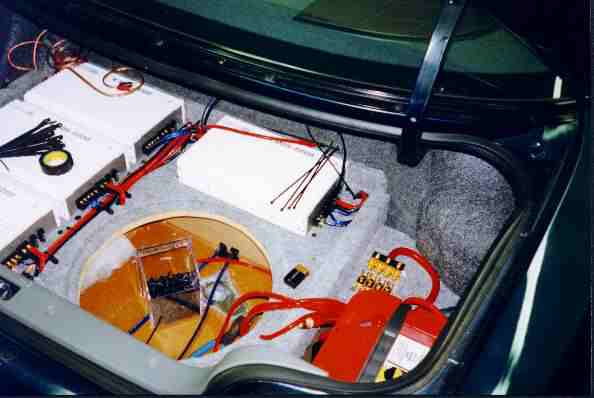

|A straight on shot a the trunk fairly cleaned w/out flush covers up midway through the install. Also note: the yellow nylon strap to hold gel cell in place.|
